Elite Series

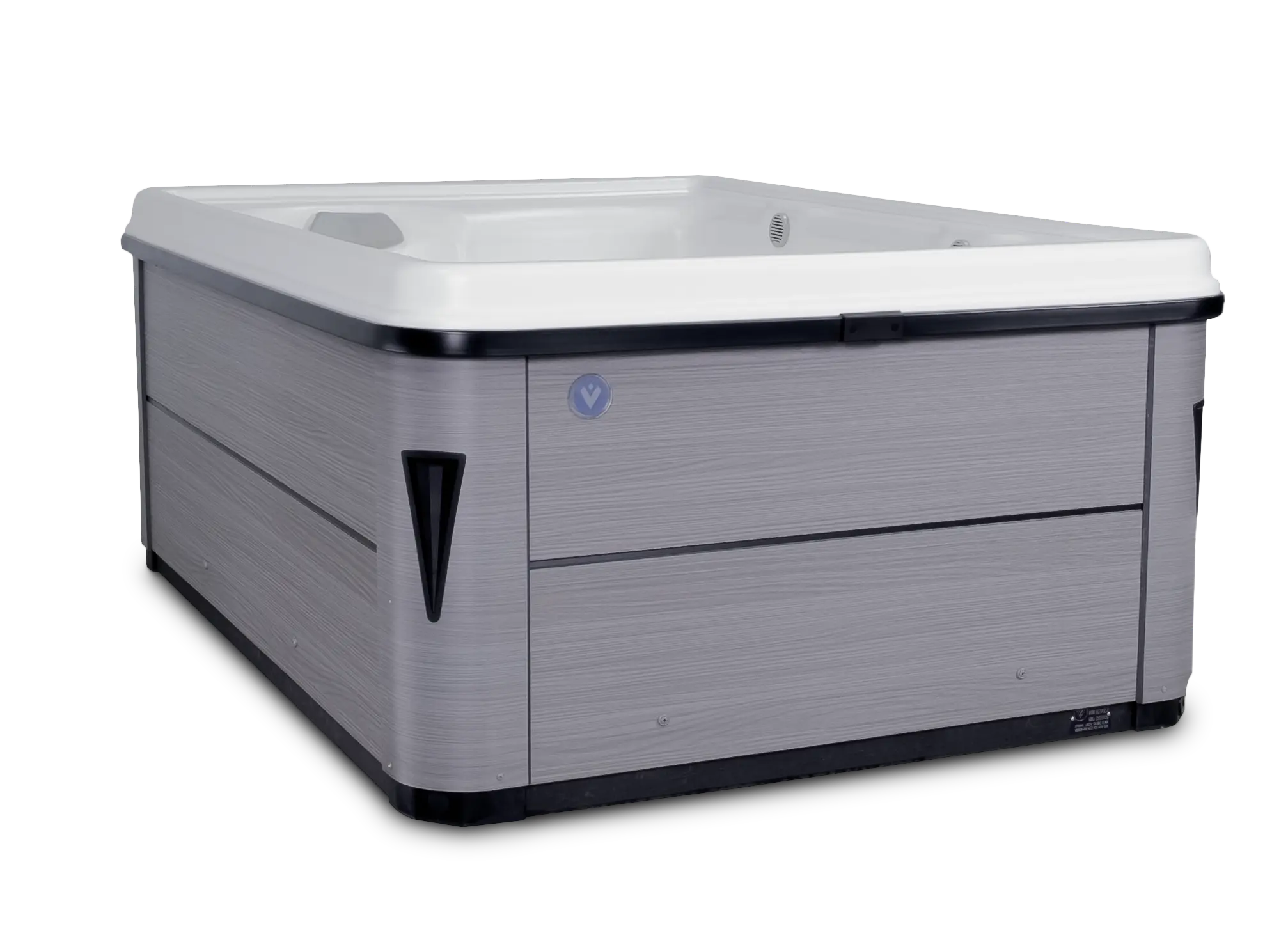

Elevate X

The Elevate X combines luxury and efficiency in a refined three-person spa designed to complement smaller outdoor living spaces. Perfect for couples or empty nesters, it features a full-body lounge and an ergonomically designed captain’s chair that deliver a personalized hydrotherapy experience. Strategically positioned jets and ambient LED lighting work together to create a calming retreat, turning your backyard into a peaceful sanctuary for relaxation, wellness, and quality time together.

Quick Comparison

Elevate X

Dimensions: 60″ x 84″ x 34″ 152 cm x 213 cm x 86 cm
Seats: 3
Jet Count: 33
Water Capacity: 210 gallons | 795 liters
Electrical: 240v/50amp

Request Pricing for Heritage Models:

GET PRICING

Full Specifications

	Elevate X
DIMENSIONS	60″ x 84″ x 34″ 152 cm x 213 cm x 86 cm
SEATING	3
SEATING LAYOUT	Lounge
TOTAL JETS	33
WATER CAPACITY	210 gallons \| 795 liters
ELECTRICAL	240v/50amp
DRY WEIGHT	395 lbs. \| 179 kg
FILLED WEIGHT	2,148 lbs. \| 973 kg
HEATER	5.5kW Heater
CONTROL SYSTEM	Balboa Control System
JET PUMPS	1
ENERGY EFFICIENCY	2.0 lb. density polyurethane closed cell foam; Arctic Insulation; Certified to California Energy Commission (CEC) Standards
FILTRATION	50 square foot filter
PERFORMANCE RATING	VSHS 4
WATER CARE	ClearGuard CD ozone system
INSULATION
COVER	1.5 lbs. density, 4"" to 2.5"" tapered foam core cover Weather resistant material \| Black
LIGHTING	LED points-of light, interior and exterior
WATER FEATURE	Infinity-Edge

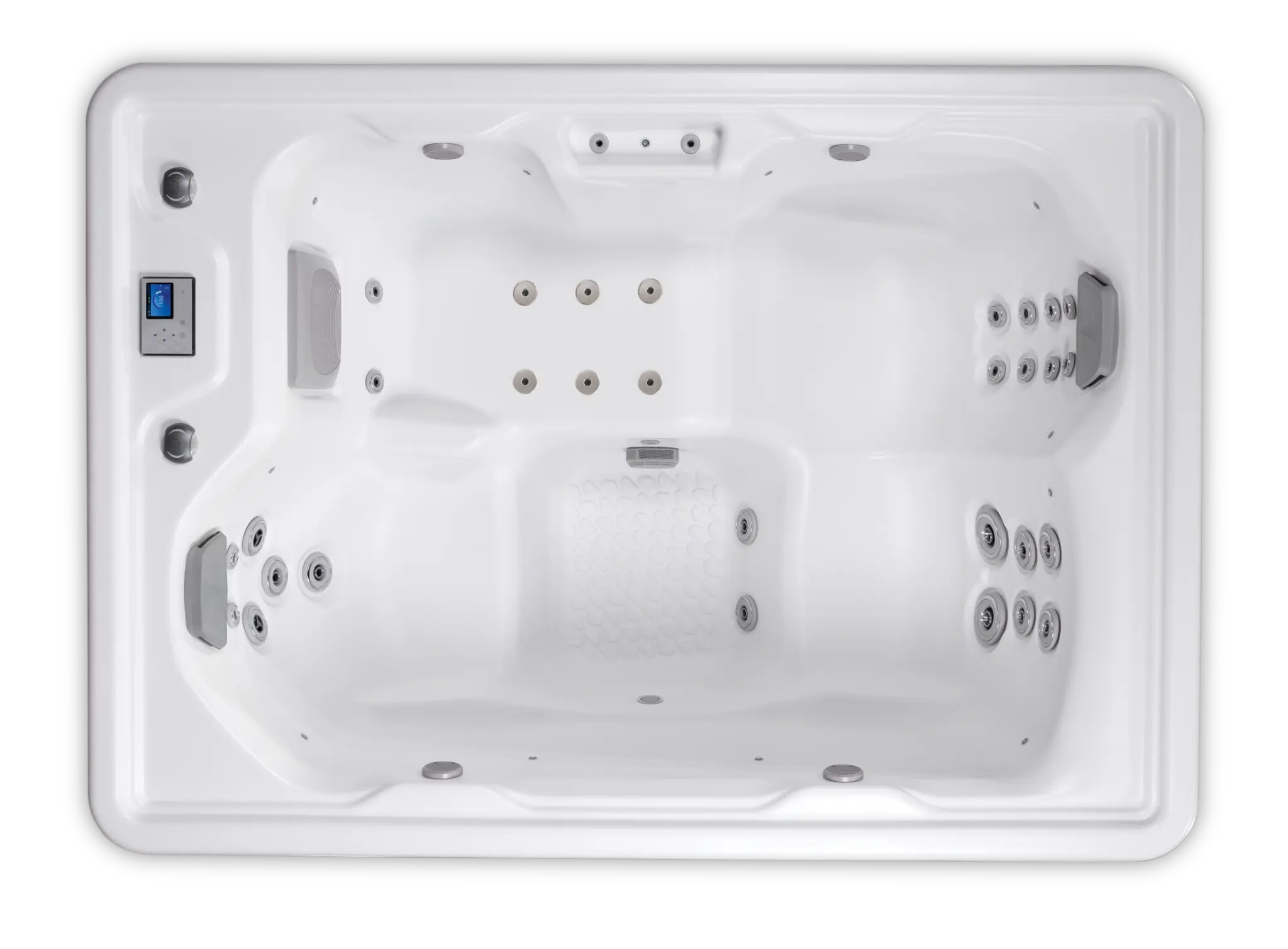

JET BREAKDOWN	10 Two-inch directional jets 2 Two-inch multi-port jets 8 Three-inch directional jets 2 Three-inch rotating jets 2 Four-inch directional jets 6 Two-inch stationary jets
AUXILARY JETS	1 \| Ozone jet 2 \| Water feature jets
Available Options & Accessories
CONTROLS	SpaTouch™ 4
ENTERTAINMENT SYSTEMS	Bluetooth® stereo, integrated 3" speakers and subwoofer
ADVANCED JETTING	AirX® Therapy System
COVER LIFTER	Standard Viking Spas lifter
STEPS	Premium or Standard \| Black
